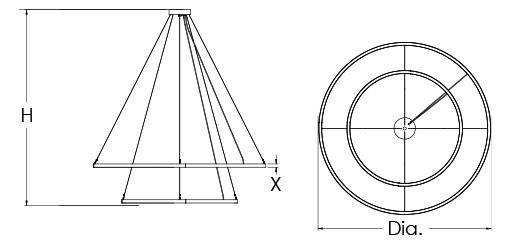

Print This PageDIMENSIONS
| Dia | X | H | BASE MODEL NO. |
| 48″/36″ | 1 3/8″ | 96″ | S1065-L78-L62 |
| 60″/36″ | 1 3/8″ | 96″ | S1066-L90-L62 |
| 60″/48″ | 1 3/8″ | 96″ | S1066-L90-L78 |
| 72″/36″ | 1 3/8″ | 96″ | S1067-L132-L62 |
| 72″/48″ | 1 3/8″ | 96″ | S1067-L132-L78 |
| 72″/60″ | 1 3/8″ | 96″ | S1067-L132-L90 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277 (Drivers are Remote)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided (Additional structural blocking required for weight)
FEATURES
• Silicone Opal Lens
• LED Downlight
• Clear Silver Braided Cord(s) with Adjustable Aircraft Cable(s)
• LED 0-10V 1% Dimming Drivers
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + Finish + OA + Option Code
| S1065-L78-L62 | + | 27K | + | PT | CT | + | OA | + | Option |
| S1066-L90-L62 | 30K | BA | PWT | ||||||
| S1066-L90-L78 | 35K | NT | BST | ||||||
| S1067-L132-L62 | 40K | GT | TT | ||||||
| S1067-L132-L78 | ZT | CC | |||||||
| S1067-L132-L90 |
FINISHES
| BA Brushed Aluminum NT Nickel Touch GT Gold Touch ZT Bronze Touch CT Copper Touch |
PWT Pewter Touch BST Blackened Steel Touch TT Toffee Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA96
BK8 Black Cord with (8) Adjustable Aircraft Cables
WH8 White Cord with (8) Adjustable Aircraft Cables
LIGHT OUTPUT
LXX = ~ 65 LPW Delivered Lumens (Example: L90= 90W x 65LPW = 5,850 Lumens)
