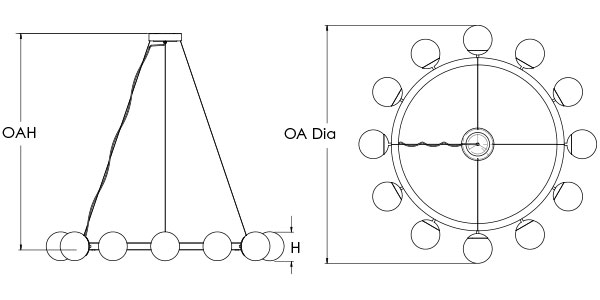

DIMENSIONS

OA-Dia Dia H OAH BASE MODEL NO.
66″ 48″ 8″ 60″ S1055-8L16
66″ 48″ 8″ 60″ S1055-8N08
66″ 48″ 8″ 60″ S1055-12L16
66″ 48″ 8″ 60″ S1055-12N08
78″ 60″ 8″ 72″ S1056-8L16
78″ 60″ 8″ 72″ S1056-8N08
78″ 60″ 8″ 72″ S1056-12L16
78″ 60″ 8″ 72″ S1056-12N08
90″ 72″ 8″ 84″ S1057-12L16
90″ 72″ 8″ 84″ S1057-12N08
SPECIFICATIONS

Voltage: 120V Only (For alternate voltage options, please contact factory.)
Dimming: 0-10V dimming to 1%, 120/277 (Drivers are Remote) (LED ONLY) (For alternate dimming options, please contact factory.)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided (Additional structural blocking required for weight)

FEATURES

• 9″ Canopy
• (8-12) 8″ Dia. Acrylic Globes
• Clear Silver Braided Cord with (4) Adjustable Aircraft Cable(s)
• N08 Models have E26 Sockets for 8 Watt LED Lamps by Others
• LED 0-10V 1% Dimming Drivers

ORDER AS A COMPLETE UNIT:

Model No. + CCT + Finish Code + OA +  Option Code

S1055-8L12 + 27K + PT + OA + Option
S1055-8N08 30K XT
S1055-12L12 35K
S1055-12N08 40K
S1056-8L12
S1056-8N08
S1056-12L12
S1056-12N08
S1057-12L12
S1057-12N08
FINISHES

PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*
CC Custom Painted Finish

*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS

EML Remote 10W Emergency LED Battery Backup (LED Model Only)
OA Specify Overall Height of Fixture in Inches; E.G. – OA96
BK4 Black Cord with (4) Adjustable Aircraft Cables
WH4 White Cord with (4) Adjustable Aircraft Cables

LIGHT OUTPUT

LXX = ~90 LPW Delivered Lumens (Example: 8L16= 8 x 16 x 90 = 11,520 Lumens)

N08 = 8W Medium Base Socket
