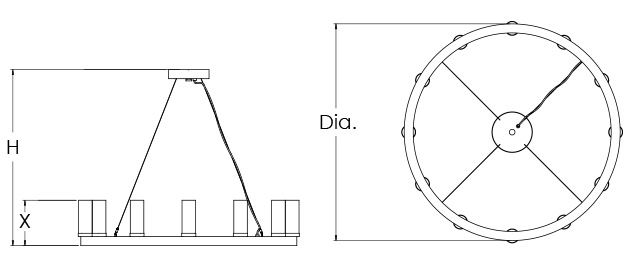

Print This PageDIMENSIONS
| Dia | X | H | BASE MODEL NO. |
| 48″ | 12″ | 48″ | S1050-8L08 |
| 48″ | 12″ | 48″ | S1050-12L08 |
| 60″ | 12″ | 60″ | S1051-8L08 |
| 60″ | 12″ | 60″ | S1051-12L08 |
| 72″ | 12″ | 72″ | S1052-8L08 |
| 72″ | 12″ | 72″ | S1052-12L08 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided (Additional structural blocking required for weight)
FEATURES
• Closed Top Opal Matte Acrylic Lens – 3″ Diameter
• LED Uplight ~8W per “candle”
• AC Cable Mounted – Adjustable
• LED 0-10V 1% Dimming Driver in Canopy
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + Ring Finish + Cup Finish + OA + Option Code
| S1050-8L08 | + | 27K | + | PT | PWT | + | PT | PWT | + | OA | + | Option |
| S1050-12L08 | 30K | BA | BST | BA | BST | |||||||
| S1051-8L08 | 35K | NT | TT | NT | TT | |||||||
| S1051-12L08 | 40K | GT | CC | GT | CC | |||||||
| S1052-8L08 | ZT | BB | ZT | BB | ||||||||
| S1052-12L08 | CT | PB | CT | PB |
FINISHES
| BA Brushed Aluminum NT Nickel Touch GT Gold Touch ZT Bronze Touch CT Copper Touch PWT Pewter Touch |
BST Blackened Steel Touch TT Toffee Touch CC Custom Painted Finish BB Brushed Brass PB Polished Brass PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA96
BK4 Black Cord with (4) Adjustable Aircraft Cables
WH4 WH1 White Cord with (4) Adjustable Aircraft Cables
LIGHT OUTPUT
LXX = ~ 80 LPW Delivered Lumens (Example: 8L08= 8 x 8 x 80 = 5,120 Lumens)
