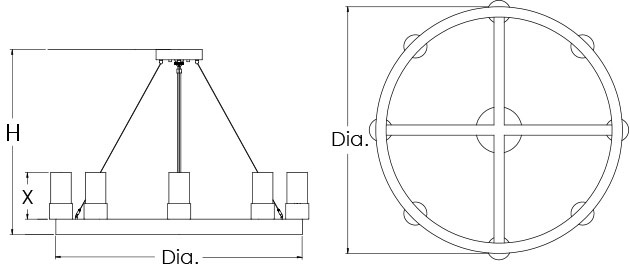

DIMENSIONS

Dia X H BASE MODEL NO.
48″ 8″ 48″ S1045-8L08
60″ 8″ 60″ S1046-8L08
60″ 8″ 60″ S1046-12L08
72″ 8″ 72″ S1047-8L08
72″ 8″ 72″ S1047-12L08
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided (Additional structural blocking required for weight)

FEATURES

• Closed Top Opal Matte Acrylic Lens – 4″ Dia.
• LED Uplight ~8W per “Candle”
• Clear Silver Braided Cord with (4) Adjustable Aircraft Cable
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Ring Finish + Cup Finish  + OA + Option Code

S1045-8L08 + 27K + PT PWT + PT PWT + OA + Option
S1046-8L08 30K BA TT BA TT
S1046-12L08 35K NT BST NT BST
S1047-8L08 40K GT BB GT BB
S1047-12L08 ZT PB ZT PB
CT CC CT CC
FINISHES
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch
PWT Pewter Touch		 BST Blackened Steel Touch
TT Toffee Touch
CC Custom Painted Finish
BB Brushed Brass
PB Polished Brass
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA60
BK4 Black Power Cable
WH4 White Power Cable

LIGHT OUTPUT

LXX = ~ 80 LPW Delivered Lumens (Example: 8L08= 8QTY x 8W x 80LPW = 5,120 Lumens)
