PART NUMBER
SR‑WD105- ___- ___- ___- ___- ___
Model No.  Number
of Digits		 LED or
Lamp Base		 Watts CCT
(If Applicable)		 Finish
SR-WD105 2 L LED 16 27K PT Powder Coated*
3 30K BB Brushed Brass
4 BN Brushed Nickel
AB Antique Brass

*(Specify Color Code from the list of Powder Coating Finishes)
**(Consult Factory for more options)

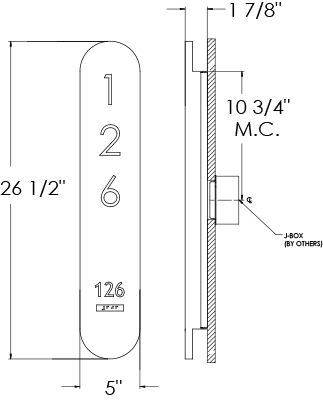

DIMENSIONS
BASE MODEL NO. H W D
SR-WD105 26 1/2″ 5″ 1 7/8″
SPECIFICATIONS

Dimming: ELV Dimming at 120V ONLY
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Metal Housing with Laser Cut Stencil Numbers
• Opal Matte Acrylic Backer Lens
• Optional Braile Numbering
• ELV Dimming

APPLICATION

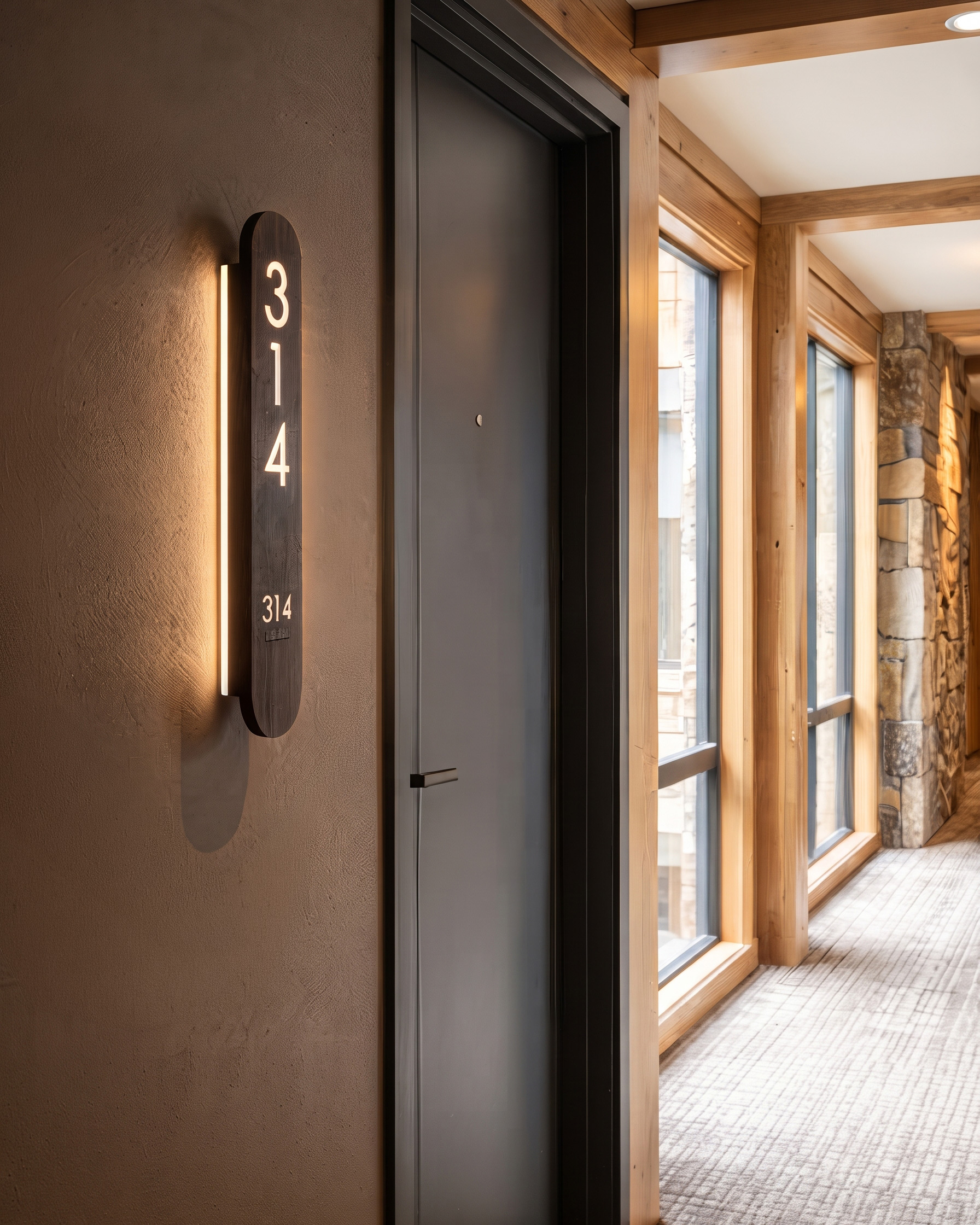

• Door Marker

Don’t see an option you are looking for? Contact your agent to request a modification.
