PART NUMBER |
||||||||
| SR‑WC144- | ___- | ___- | ___- | ___- | ___- | ___ | ||
 |
|
|
|
|
|
|
||
| Model No. | Height | LED or Lamp Base |
Watts | CCT (If Applicable) |
Finish | Diffuser | ||
| SR-WC144 | 16 | L LED | 12 (16") | 27K | XT Trending | RESResin | ||
| 32 | 24 (32") | 30K | Brushed Metal Finishes* | |||||
| BA Brushed Aluminum | ||||||||
*(Specify Color Code from the list of XT Finishes)
**(Consult Factory for more options)

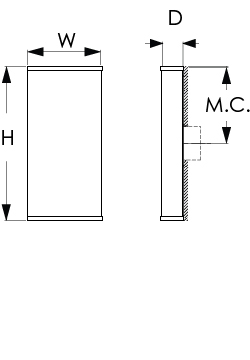

DIMENSIONS
| BASE MODEL NO. | H | W | D | MC |
| SR-WC144-16 | 16″ | 8 1/2″ | 1 3/4″ | 8″ |
| SR-WC144-32 | 32″ | 8 1/2″ | 1 3/4″ | 16″ |
SPECIFICATIONS
Dimming: ELV Dimming at 120V ONLY
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Shallow Depth – Only 1 3/4″!
• Resin Shade
• 90CRI
• ADA Compliant
• ELV Dimming
APPLICATIONS
• Corridor
• Entry
| Don’t see an option you are looking for? Contact your agent to request a modification. |
