PART NUMBER
SR‑PG128- ___- ___- ___- ___- ___- ___- ___- ___
Model No. Lamp Base Watts CCT
(If Applicable)		 Finish Beam
Spread		 Trim Finish Mounting Options
SR-PG128 L LED 30 27K BL Black N 15° AB Black AC08 (AC Cable EML Remote 10W
45 30K WH White M 24° AW White and Cord 96") Emergency LED
58 35K SV Silver F 36° AG Dark Gold AC12 (AC Cable Battery Backup
40K PT (Custom)* W 60° AC Chrome and Cord 144")

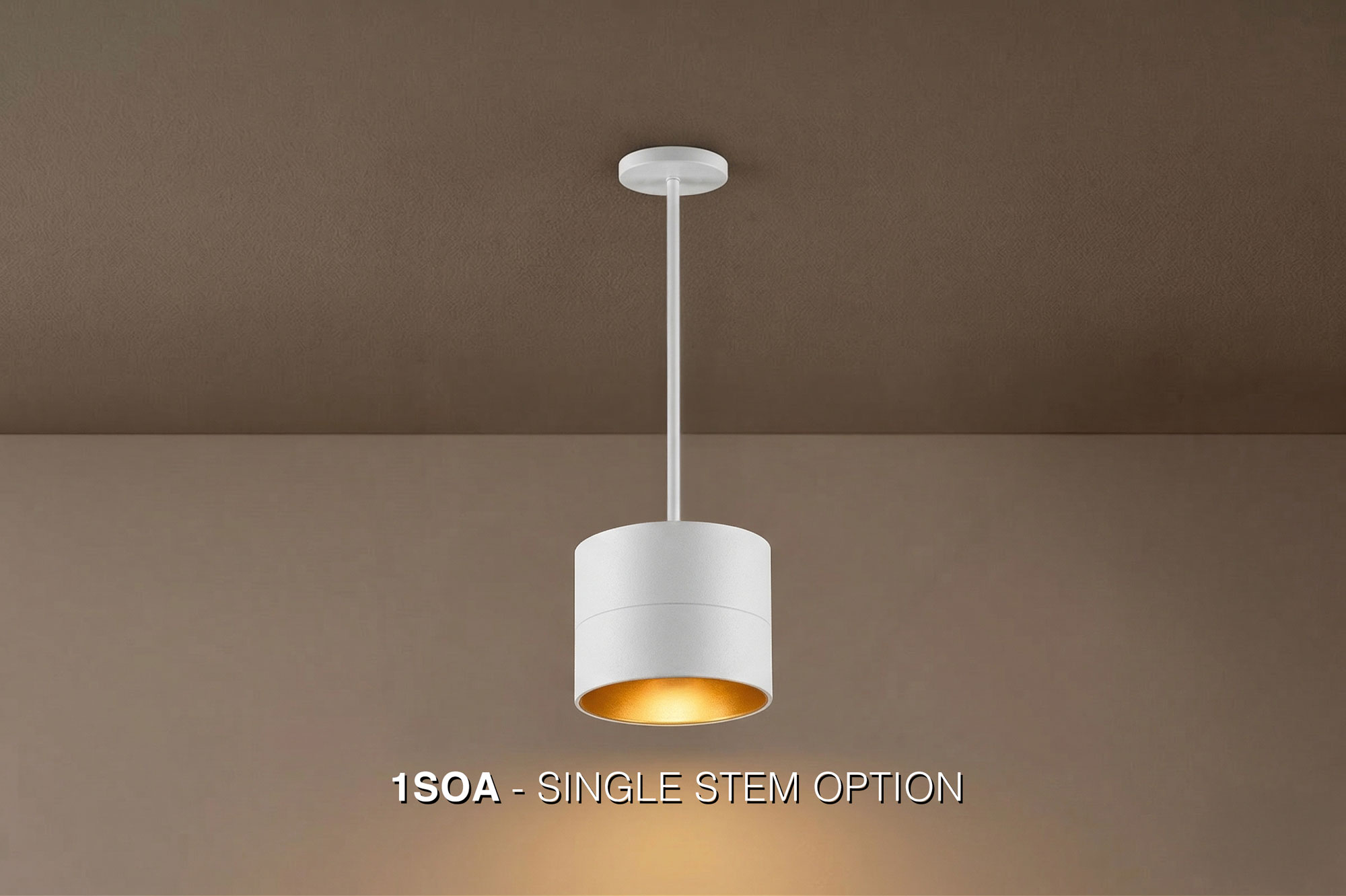

DTW3K (Dim 1SOA (Single Stem
to warm up to 30° slope
3000K>2000K) - List OA as inches)

*(Consult Factory for more options)

DIMENSIONS
BASE MODEL NO. H Dia
SR-PG128 8″ 8″
SPECIFICATIONS

Dimming: 0-10V Dimming to 1% or 120V ONLY/TRIAC Dimming
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Clean Appearance
• Beam Spread Options
• Trim Cone Options
• 90 CRI
• Lumen Output Nominal 95LPW

APPLICATIONS

• Kitchen
• Corridor
• Entry
• Bedroom
• Bath

Note: (Minimum Orders May Apply)
Don’t see an option you are looking for? Contact your agent to request a modification.
DOWNLOADS

 Product Cutsheet
