PART NUMBER |
|||||||
| SR‑MP110 | ___- | ___- | ___- | ___- | ___ | ||
 |
|
|
|
|
|
||
| Model No. | LED or Lamp Base | CCT (If Applicable) | H (Height) | W (Width) | Finish | ||
| SR-MP110 | L Integral LED | 930K 3000/90CRI | 36" | 24" | PT Powder Coated* | ||
*(Specify Color Code from the list of Powder Coating Finishes)
**(Consult Factory for more options)

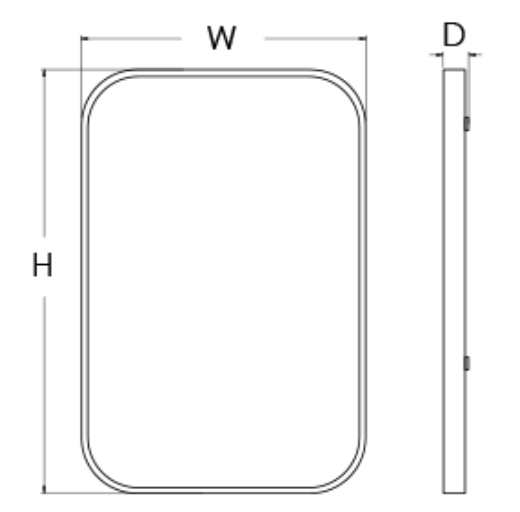

DIMENSIONS
| BASE MODEL NO. | H | W | D |
| SR-MP110 | 36″ | 24″ | 1 3/4″ |
FEATURES
• Inward-facing LEDs for direct illumination
• Rear-mounted lighting for a subtle ambient glow
• Powdercoated Matte Black Metal Frame
• 1-3/4” Depth
SPECIFICATIONS
Housing: Post Powder Coated Heavy Ga. Paintlok™ Steel Housing for structural integrity, Aluminum LED bracketry for heat sinking, Rolled Aluminum Frame
LED: 3000K, 90CRI, Constant Voltage. ~7W per linear foot of mirror perimeter.
Driver: Constant voltage 0-10V dimming driver, 120V. (Consult factory for other options.)
Mirror: 5MM glass w/polished edges.
Wiring: Hardwired connection for centrally located J-Box (by others).
| Don’t see an option you are looking for? Contact your agent to request a modification. |
