PART NUMBER |
|||||||
| SR‑CV108 | ___- | ___- | ___- | ___- | ___ | ||
 |
|
|
|
|
|
||
| Model No. | LED or Lamp Base | Watts | CCT (If Applicable) | Finish | Diffuser | ||
| SR-CV108 | L Integral LED | 08 | 27K | XT Trending | CGD Clear Cast Glass | ||
| 30K | Brushed Metal Finishes | with Opal Interior | |||||
*(Specify Color Code from the list of Powder Coating Finishes)
**(Consult Factory for more options)

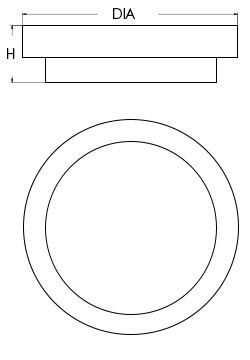

DIMENSIONS
| BASE MODEL NO. | H | Dia | |
| SR-CV108 | 2 1/4″ | 7 3/4″ |
SPECIFICATIONS
Dimming: ELV Dimming at 120V ONLY
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES

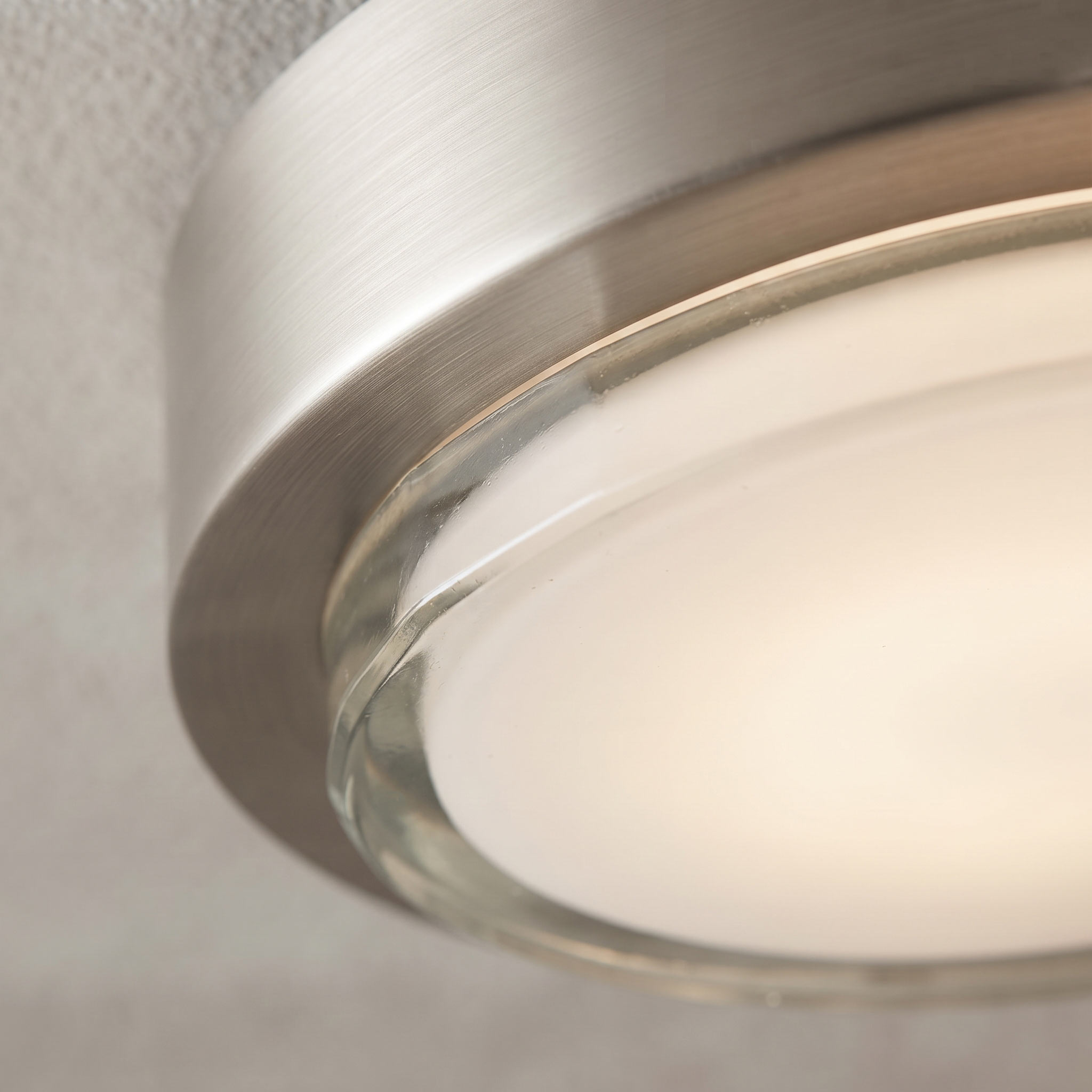

• Heavy Cast Glass Diffuser with Sprayed Opal Interior
• Clean Appearance
• Shallow Mounting Depth
• ELV Dimming
APPLICATIONS
• Kitchen
• Corridor
• Entry
• Bedroom
• Bath
| Don’t see an option you are looking for? Contact your agent to request a modification. |
