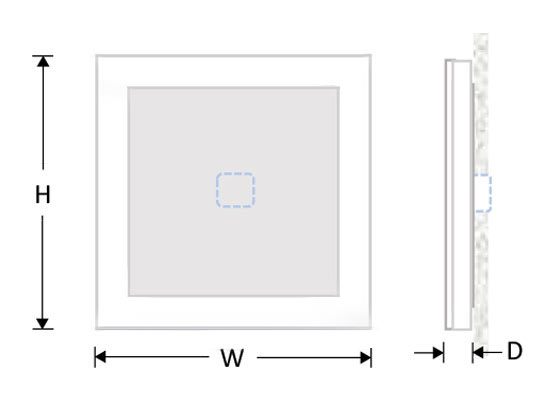

Lifio Mirror Height (in.) Length (in.) Source Options
SM020 = Glass 30″ 24″ L930K (Standard) NL = Night Light (Separate Circuit)
SM020A = Acrylic 36″ 30″ Options: NS = Night Light w/ Touch Switch
40″ 36″ L927K SD = Step Dimming via Touch Switch
40″ L935K
48″
54″ For other options, consult factory.

SPECIFICATIONS


Housing: Post Powder Coated Heavy Ga. Paintlok™ Steel Housing for structural integrity, Aluminum LED bracketry for heat sinking
LED: 3000K, 90CRI, Constant Voltage. ~7W per linear foot of mirror perimeter.
Driver: Constant voltage 0-10V dimming driver, 120/277V.  (Consult factory for other options.)
Mirror: 5MM glass w/polished edges. (Optional 3/16″ silvered acrylic w/polished edges.)
Side Lens: Extruded Opal Acrylic
Translucent Frost: Opalex coating process resists fingerprints on frosted panels.
Wiring: Hardwired connection for centrally located J-Box (by others).
